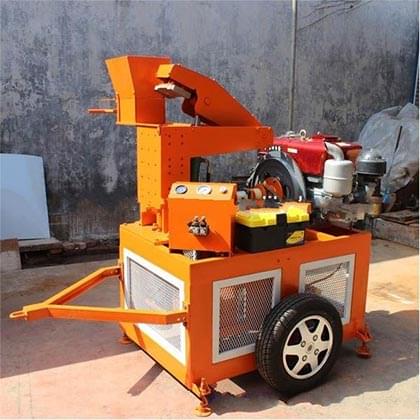

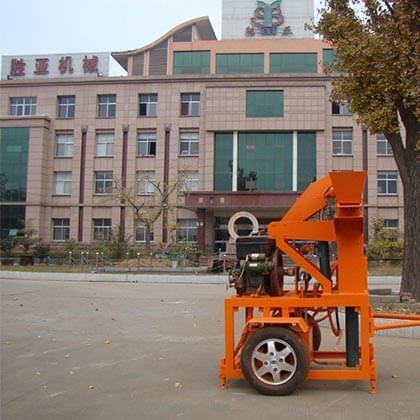

SY1-20 Interlocking Brick Machine

It is one new kind of small sized hydraulic block forming machine, which is high efficiency & durable,easy to operate,can make about 6 blocks in one minute. It is quick in product forming , high in product density and strong in pressing power. After remolding people can stand on the brick .With this machine, consumption of materials can be reduced. It is an ideal choice for customer.

Categories : lnterlocking Brick Machine

Contact Now

Description

Shipping Details
Packaging Details nude packing or as per customers’ requirements Port Qingdao,,China Lead time: Shipped in 20 days after payment MOQ:1 SET

Product Details

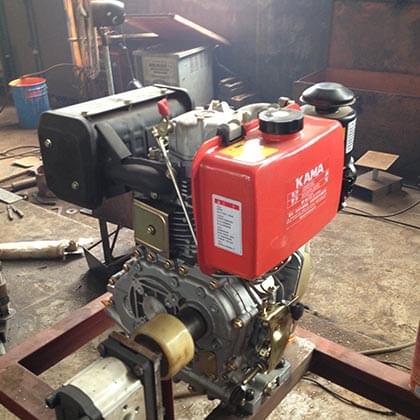

SY1-20 clay interlocking brick making machine is our newest mini hydraulic clay brick making machine.Which has two oil two oil cylinders,imported cylinder,motor&valve from Japan and Italy.It uses clay or soil or concrete materials. You can choose diesel engine or motor. So it is very good for the place where there is no power or electricity. One machine can produce different kinds of interlocking block by changing moulds. When building, just lock them together.

Specifications

rated power:2.2 kw or 12hp (diesel engine)	overall size:1000x1000x1400 mm	Weight:800kg
rated pressure:10 mpa	Cycle:20 seconds	electricity source:380v/50HZ
production capacity:300x150x100mm interlocking brick -1440 pieces/8hour 150x150x100mm interlocking brick -2880 pieces/8hour
